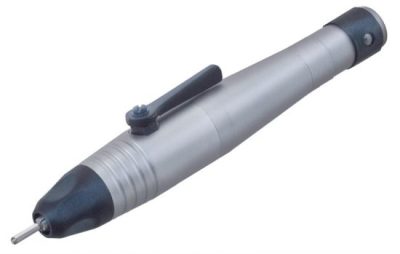

Foredom Quick Change Handpiece H.20
Handpiece has molded plastic grip and lever action for use ONLY with 2.35mm (3/32″) shank burs. 5-5/8″ long, 7/8″ diameter-center, 3/8″ diameter-front taper, 4 oz, 5.0 oz pkg wt.
$108.49
Description
The H.20 is for use ONLY with 3/32″ (2.35mm) shank burs. A lever action on the handpiece body is all that is required to change accessories. It has a molded plastic front grip with tapered sides for easy and close handling, plus pre-lubricated ball bearings that do not require additional lubrication. The collet in this handpiece can be replaced and/or adjusted if the hold on a bur shank is not secure. Watch the video for instructions on making collet adjustments. 5-5/8″ long, 1-1/8″ dia. (center), 3/8″ dia. (front taper), wt. 4 oz., ship wt. 4.75 oz. H.20 is a standard key tip handpiece. H.20 Handpiece Instructions H.20 Handpiece Parts List
Additional information
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 8 × 1.25 × 1.25 in |
