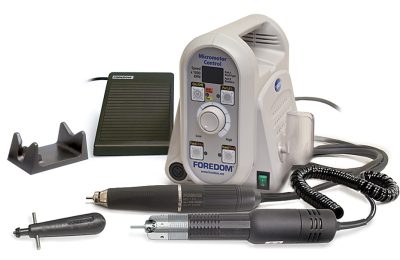

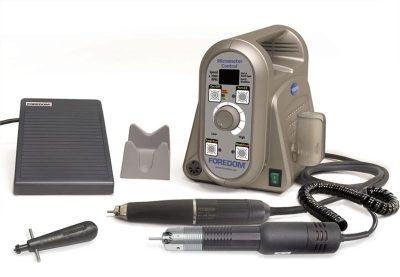

Foredom Dual Handpiece Brushless Kit, Chuck Handpiece K.1055

Description

Foredom Dual Handpiece Brushless Kit, Chuck Handpiece – K.1055

¥ Brushless rotary handpiece connects to Port B located in the back of the control box. It runs virtually vibration free with high torque throughout the entire speed range of 1,000-50,000 rpm. See additional specs below.

¥ Brush type High Torque, Chuck Style rotary handpiece connects to Port A in the front of the control. See additional specs below.

¥ Control box with digital display, variable speed foot pedal, 2 handpiece cradles, and an extra fuse also included. See additional specs below.

Product Features-
¥ Two Year Limited Warranty
¥ Brushless motor design carbon brushes NEVER need changing
¥ Maximum Torque or Watts Output 10 oz. in or 70mNm or 230W. Powerful even at minimum speeds
¥ Sealed housing eliminates dust, noise, and vibration
¥ Additional port for Brush Type Micromotor Handpiece:

This brushless micromotor is excellent for usage at high, medium and low speed.

High Speed provides smooth, clean, and sharp detailing in metal and wood. ItÕs also great for bright-cutting, grinding, finishing, texturing, and polishing. You never need to changes the brushes on this handpiece.
Medium Speed is ideal for effortless and fast stock removal in wood, diestone, or acrylics.
Low Speed offers extra control and power for stone setting and milling.
HP4-817 Control Box and Front Panel LED
¥ 50/60 Hz, 100VA, 5.4″ wide, 9.1″ deep, 7″ high
¥ Dial speed control sets precise speed and torque
¥ Auto cruise, Forward or Reverse rotation, Dial or Foot speed control
¥ Digital display for precise speed and torque settings
¥ Built in overload protection
¥ Brushless micromotor handpiece connects to port on back side of control box
¥ Brush-type handpiece connects to port in front.

H.MH-150 Brushless Handpiece/Motor
¥ 6.3″ long, 1.06″ motor diameter, .75″ grip diameter, 8.4 oz/237.7 gr., 115 volt
¥ Ergonomic and brushless with long-lasting ceramic ball bearings
¥ Simple bur changes twist to release and lock in bur
¥ Comes with either 2.35mm (3/32″) or 1/8″ collet installed.

H.MH-120 Brush type High Torque/Chuck Style Handpiece/Motor
¥ Extra power and a geared 3-jaw #0 chuck that takes any size rotary accessory or drill bit with shanks up to 5/32″ (4mm) diameter.
¥ For deburring cast pieces, polishing, taking down weld seams, and moderate to heavy grinding and rapid stock removal in metal and wood.
¥ Comes with a chuck key in molded plastic handle.
¥ Length= 8-3/32″ / 205.8 mm, weight=1-lb. 2-oz / 510 grams, diameter= 1-1/64″ / 26mm at chuck end, CE compliant.
¥ Comes supplied in Kit K.1020 and works with the same HP4-917 Control Unit that comes with Micromotor Kits K.1070, K.1080 and K.1090.

HP7-7060 Foot Speed Control
¥ Variable speed foot control works with control box HP4-817.
¥ Varies speed from 1,000 Ð 50,000 RPM.
