100C Dust Extraction System

Description

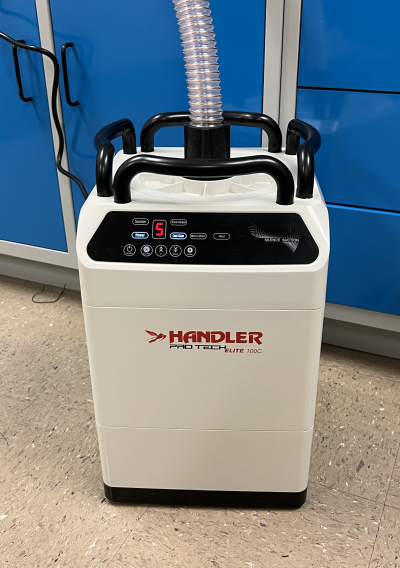

The Handler Pro Tech Elite 100C Multi-Use Dust Extraction System is a powerful, space-efficient solution engineered specifically for CAD/CAM milling applications in dental and dental lab settings. This advanced dust collector combines Handler’s innovative technology with practical functionality to deliver superior dust removal while maintaining a clean work environment.
Performance & Filtration: The 100C generates maximum airflow of 150 CFM (cubic feet per minute) with maximum air pressure of 23kPa (3.34 psi) through a sophisticated 9-stage suction system. It features dual-stage filtration consisting of a 1st stage 199mm drum cartridge HEPA filter and a 2nd stage air filter, effectively capturing dust particles generated during the milling process.
Versatile Applications: Beyond traditional dust collection, the 100C can be used as a standalone dust collector, synchronized directly with CAD/CAM milling machines, connected to certain micromotors, or even operated with a foot pedal. It’s compatible with dry milling of a wide range of materials including zirconia, wax, PMMA, composite resin, PEEK, gypsum, porcelain, and glass fiber reinforced resin.
Smart Features & Design: The unit operates at a quiet 55dB and includes digital keypad control with an intelligent filter replacement indicator that monitors suction pressure and notifies users when filters need cleaning or replacement. Its compact under-bench design measures 11.3″W x 11.6″L x 19″H and weighs just 30 pounds, making it ideal for space-constrained labs.
Complete Package: The 100C comes fully equipped with integrated motor, suction hose (1.5″ ID, 1.8″ OD), CAM cabling interface, power cord, and digital controls. Optional CAM cabling is available for popular milling machines (Glidewell, Roland, Imes-icore). Electrical requirements are 100VÐ120V, 50/60Hz, 1200W ±5%, single phase AC.
